Pre-sales FAQ:
-

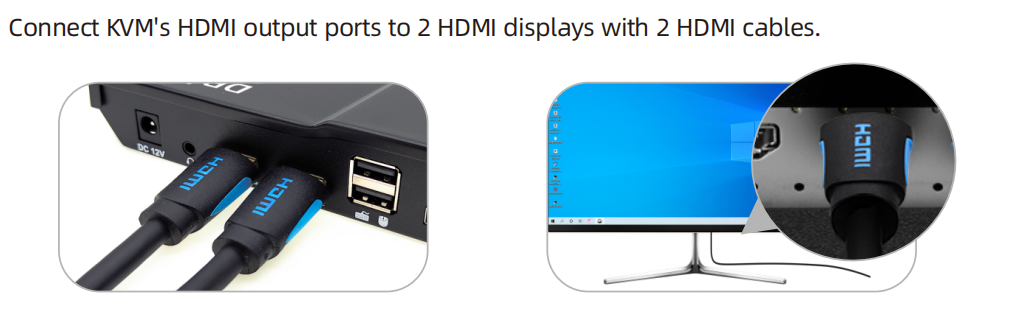

Q: How do I connect my devices to the HDK202-P23?
A: There are two KVM cables (each consisting of an HDMI cable and a USB cable) and two DP cables in the product packaging. When connecting your devices to KVM, each computer should be connected to KVM using one KVM cable (each consisting of an HDMI cable and a USB cable) and a DP cable. Each monitor should be connected to KVM using an HDMI cable.
-
Q: How many display modes are available for HDK202-P23?
A: The HDK202-P23 KVM offers 2 display modes. You can choose to implement 2-screen extended display or duplicate display or display different PCs on 2 monitors.
Display Mode 1: Display the same PC:
Display Mode 2: Display the different PCs:
-
Q: How should I connect my keyboard and mouse?
A: Inside the package, you will find two KVM cables, along with two DP cables. Each KVM cable consists of an HDMI cable and a USB cable. The USB-A to USB-B cable is connected to transfer USB data between the computer and the KVM, which enables the keyboard and mouse to control computers normally. Simply connect the USB A end of the cables to their respective computers and insert the USB B end into the KVM. Then, you can connect your mouse and keyboard to the dedicated keyboard and mouse ports on the KVM.
-
Q: Does HDK202-P23 support Bluetooth keyboard and mouse?
A: This model does not support Bluetooth keyboard and mouse, and all our KVMs do not support Bluetooth keyboard and mouse, but they all support 2.4GHz wireless keyboard and mouse and are compatible with a wide range of mechanical keyboards and mice, wireless keyboards and mice, and multimedia keyboards and mice.
-
Q: Can I use the keyboard and mouse on two computers simultaneously?
A: Our KVMs are used to share a set of keyboard and mouse between two computers, and the keyboard and mouse are not used between the two computers at the same time, but the sharing of keyboard and mouse is achieved by switching input devices. In display mode 2 (2 monitors display the different PCs), you can double-click [Right-Alt] to switch the focus of the keyboard and mouse. This way, you can control both computers without the need to physically disconnect and reconnect the peripherals each time you want to switch between them.
-
Q: What keyboards are compatible with your KVM?
A: Our KVM is compatible with most keyboards. Considering our KVM's dedicated keyboard and mouse ports are equipped with special hotkey chips, there are some typical reasons that may cause compatibility issues:
1. Some keyboard models use proprietary protocols that are temporarily incompatible with the dedicated ports on our KVM.
2. Certain keyboard models, when plugged into the dedicated ports on the KVM, consume excessive bandwidth, leading to compatibility issues such as keyboard lag or key sticking.
To address these compatibility issues, we recommend customers connect keyboards that encounter problems when plugged into the keyboard and mouse dedicated ports on the KVM to the USB 2.0/USB 3.0 ports on the KVM. The USB 2.0/SUB 3.0 ports do not have the built-in special chips found in the dedicated keyboard and mouse ports. Plugging your keyboard into the USB 2.0/USB 3.0 ports effectively treats it as if it were directly connected to the computer.
Due to the wide variety of keyboard models available in the market, our R&D department cannot conduct compatibility tests on every keyboard. Below are some keyboard models that have been reported as incompatible by customers: Dell KB813 (and similar keyboards with a card slot), Logitech MX series (some of which cannot manually switch between Windows and macOS modes), Roccat, and certain Microsoft keyboard models.
You can also refer to keyboard and mouse models that have been tested and approved by our R&D department:
-
Q: Can the USB 3.0 port on the front panel charge my computer?
A: The USB 3.0 port on the front panel supports charging functionality with a maximum output power of 7.5W. So, it is designed to charge mobile phones or tablets and is not suitable for charging laptops or computers.
-
Q: Does HDK202-P23 support audio and USB locking?
A: The HDK202-P23 does not support locking audio and USB focus. However, you can switch separately audio focus and USB focus using a set of hotkeys as follows.
To switch the USB 3.0 device connected to the KVM between 2 PCs in display mode 2, use the following hotkey combination: [Right-Ctrl]→[Right-Ctrl]→[↑]
To switch the audio focus between 2 PCs, use the following hotkey combination: [Right-Ctrl]→[Right-Ctrl]→[↓]
-
Q: How do I switch the input sources via the buttons on the front panel?
A:
-
Press [Select] button to switch between PCs on display mode 1.
-
Press [A]/[B] button to switch between PCs on the corresponding monitor on display mode 2.
-

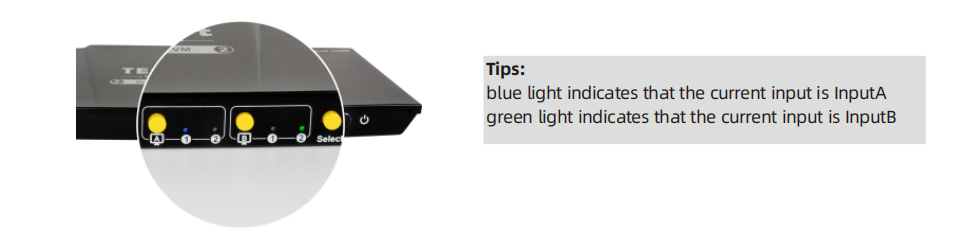

The indicator lights blue means the current PC’s main desktop is displayed on the marked monitor, it lights green means the current PC’s subordinate desktop is displayed on the marked monitor. For example, press [A] until you see the 1 LED is lit blue, which means you have selected PC1 Input A as input for Display A; press [B] until you see the 2 LED is lit green, which means you have selected PC2 Input B as input for Display B.
-
When switching individually, the default channel selection sequence is PC1 Input A - PC1 Input B - PC2 Input A - PC2 Input B. If one of the monitors has already determined the display channel, the channel selection of the other monitor will automatically skip the channel displayed by the previous monitor. For example, when Display A displays PC1 InputA, the PC1 InputA port displayed by DisplayA will be skipped when DisplayB is switched.
-
Q: What are the differences between HDK202-P23 and HDK0402A1U?
A:
-
Q: Does the HDK202-P23 feature EDID emulation?
A: Yes, it supports EDID emulators in each input port to keep PCs always having correct display information. (Note: this function is supported only in display mode 1)
-
Q: Does HDK202-P23 support operation at a 4K60Hz resolution?
A: Yes, the HDK202-P23 supports 4K resolutions up to 3840x2160 (4K) @60Hz, 3440x1440@100Hz, 2560x1440@120Hz, 2560x1440@144Hz(DSC), and is also backward compatible. However, this model do not support 5120x1440p.
-
Q: How can the audio signal be transmitted from headphones to the selected computer? What cable is needed?
A: On the HDK202-P23, there is a 3.5mm TRRS headphone jack where you can connect a 3.5mm TRRS cable to transfer audio information from the headset to the chosen computer. Additionally, this dual monitor KVM switch supports the hotkey combination [Right-Ctrl]+[Right-Ctrl]+[↓] to switch audio focus between two PCs.
-
Q: Does HDK202-P23 support G-Sync?
A: Our R&D department has conducted tests, and it is compatible with enabling G-Sync when using our KVM. According to NVIDIA's official documentation, G-Sync typically requires HDMI 2.1 or DP 1.2 and above. However, many manufacturers have implemented adaptive algorithms, making HDMI 2.0 support G-Sync(or G-Sync compatible mode) as well.
It needs to be noted that:
① First of all, your input and output source device needs to support G-Sync.
② Our KVM will not make any modification to your video signal (data pass-through)
③ Our USB 3.0 HDMI KVM Switch supports the HDMI 2.0 protocol. The maximum bandwidth is 18gbps. Using G-Sync will cause a certain instantaneous bandwidth increase.
Therefore, when you use this function, you must pay attention to bandwidth issues. Please be careful not to exceed the maximum bandwidth limit.
It needs to be noted that:
① First of all, your input and output source device needs to support G-Sync.
② Our KVM will not make any modification to your video signal (data pass-through)
③ Our USB 3.0 HDMI KVM Switch supports the HDMI 2.0 protocol. The maximum bandwidth is 18gbps. Using G-Sync will cause a certain instantaneous bandwidth increase.
Therefore, when you use this function, you must pay attention to bandwidth issues. Please be careful not to exceed the maximum bandwidth limit.
-
Q: My desktop: GPU Zotac Gaming GeForce RTX 3070 Ti 8GB GDDR6X Trinity OC Triple Fan (Currently using DisplayPort cable to connect to the primary monitor and HDMI cable to connect to the secondary monitor). Laptop: HP EliteBook 830 G82). Primary Monitor: AOC 24G2U/BK. Secondary Monitor: ASUS VS228H. Keyboard: Razer BlackWidow V3. Mouse: Logitech Pro Wireless Gaming. I'm looking for a KVM that allows me to switch my two monitors, keyboard, and mouse between my desktop and laptop with a single button. If possible, I would like the KVM to provide power and video to the laptop with a single cable.
A: I believe that our HDK202-P23 KVM could be the ideal solution to meet your needs.
Additionally, when connecting the HDK202-P23, each computer will require an HDMI cable, a DP cable, and a USB-A to USB-B cable, while each monitor will need an HDMI cable to connect to the KVM. If your device lacks sufficient ports, you may need to purchase additional conversion cables and docking stations. Our package includes all the necessary cables required for the computer end. Any additional cables or conversion cables will need to be purchased separately.
To assist you in selecting the appropriate cables for specific devices, you can check the reference list below:
HDK202-P23:
1. desktop: one HDMI cable; one DP cable; one USB-A to USB-B cable
2. laptop: one HDMI cable; one USB-C to DP conversion cable; one USB-A to USB-B cable
3. AOC 24G2U/BK: one HDMI cable
4. ASUS VS228H: one HDMI cable
Regarding whether the converter will affect the resolution, generally speaking, it should not impact the resolution. However, if there is an incompatibility issue between the converter and our device, it may cause video signal transmission issues such as flickering, black screen, or reduced resolution. We cannot guarantee it completely.
However, regarding your statement "I would like the KVM to provide power and video to the laptop with a single cable.", I regret to tell you that our KVM is unable to provide power to the devices as you mentioned.
If you have other concerns, please feel free to reach out to our customer support center via the contact information located in the bottom right popup widget of our official website for assistance. We are here to help.
-
Q: Is it safe to use your KVM?
A: Yes, it is. Our VM falls under the category of physical KVMs. It is designed specifically for switching and transmission of audio, video, and USB data. One remarkable aspect of our KVM system is that it functions independently of internet connectivity; it simply requires a power connection to operate.
Our KVM employs a direct data transmission mode, ensuring that no alterations are made to the transferred data during the process. Furthermore, it is important to note that the KVM does not possess any storage functionality, alleviating any concerns about potential data leaks. Essentially, our KVM serves as a dedicated device that not only ensures an absence of data exchange between connected hosts but also facilitates the shared use of a single set of keyboard, mouse, and display between two host systems, all achieved through a physically isolated switching mechanism.
-
Q: Why should I choose your products?
A: 1. We specialize in a variety of KVMs, including single-monitor KVMs, dual-monitor KVMs, and triple-monitor KVMs.
2. Our multi-monitor KVMs offer two display modes: dual-screen mode (where both monitors simultaneously display the same input source) and extended screen mode (where both monitors simultaneously display two different input sources).
3. Most of our products currently support high-resolution displays at 4K60Hz.
4. Our products come equipped with an independent audio interface and multiple additional USB2.0/USB 3.0 ports.
5. Convenient operation with multiple switching options (front-panel buttons/remote control/keyboard hotkeys).
6. Our KVMs are designed with keyboard and mouse pass-through functionality, ensuring compatibility with a wide range of keyboard and mouse devices.
7. Join our VIP membership program to extend the warranty period and enjoy significant discounts for trade-ins.
8. Enjoy peace of mind with our reliable after-sales service.
-
Q: How to Use: Quick Start with Influencer Videos.
A: You can learn more about HDK202-P23 by the following link: HDK202-P23
After-sales FAQ:
-
Q: Can I disable the buzzer sound on the KVM?
A: Yes, you can press the hotkey combination: [Right-Ctrl] → [Right-Ctrl] → [F11] to enable or disable the buzzer sound. Tips: The default setting for the buzzer sound is disabled; Repeat this step to enable the buzzer sound.
-
Q: Why can't I switch input sources by pressing Scroll Lock + Scroll Lock + 1?
A: Please try pressing other hotkey trigger keys to see if you may have accidentally set the hotkey trigger key to a different key. The default hotkey trigger key for the HDK202-P23 is Right-Ctrl and it supports changing the hotkey trigger key to Scroll Lock or Left-Ctrl. Please try pressing Right-Ctrl + Right-Ctrl + 1 / Scroll Lock + Scroll Lock + 1 / Left-Ctrl + Left-Ctrl + 1 to see if it works.
-
Q: How to change the hotkey trigger keys? Can I change it to any key?
A: There are three kinds of hotkey trigger keys for this product. The default is the [Right-Ctrl] key, and the alternatives are the [Scroll Lock] and [Left-Ctrl] keys. However, HDK202-P23 does not support customizing the hotkey trigger key to any other key, whereas HKS0202A10 does support this function. You can switch the hotkey trigger keys to others by:
1. 10 seconds after powering on the KVM, press and keep holding the [Select] button on the front panel until you hear the buzzer beeping and the control hotkey is switched.
2. Press the keyboard hotkeys to cyclically switch the control hotkey. The hotkey combination is [Hotkey]+[Hotkey]+[F1], you can modify the trigger hotkeys to which you want according to the sequence shown in the figure below.

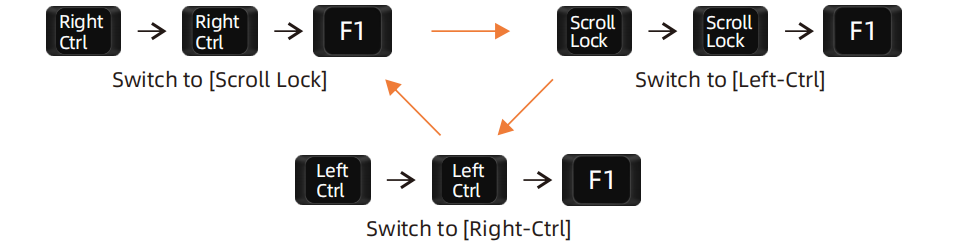

For example:
Switch hotkey trigger keys to [Scroll Lock]: [Right-Ctrl]+[Right-Ctrl]+[F1]
Switch hotkey trigger keys to [Left-Ctrl]: [Scroll Lock]+[Scroll Lock]+[F1]
Switch hotkey trigger keys to [Right-Ctrl]: [Left-Ctrl]+[Left-Ctrl]+[F1]
-
Q: I only have one HDMI port on my computer. How can I connect to the KVM?
A: Please kindly check if there are any other audio and video ports on your computer. Typically, computers are equipped with multiple audio and video ports. If your computer has other audio and video ports such as USB-C, you can try using conversion cables or docking stations for the connection. If you're unsure, please feel free to reach out to our customer support center via the contact information located in the bottom right popup widget of our official website for assistance. We are here to help.
-
Q: Why do my keyboard and mouse not work at all?
A: Please try the following troubleshooting steps to figure out the problem:
1. Please make sure your keyboard and mouse are wired type or with a USB receiver. Our KVM does not support keyboards and mice that can only be connected by Bluetooth.
2. Please check if each computer has a USB cable connected to the KVM, the USB cable is used to transfer USB data between the computer and the KVM.
3. If all the cables are connected, please check if your keyboard and mouse are plugged into the dedicated keyboard and mouse ports on the KVM; and whether you can't use the keyboard and mouse normally no matter which input source you switch to.
4. If so, please try plugging it into the USB 3.0 ports.
5. If the keyboard and mouse do not work when plugged into the dedicated keyboard and mouse ports, but work normally when plugged into the USB3.0 ports, there may be compatibility problems between the keyboard and mouse you are using and the KVM or the dedicated keyboard and mouse ports may be damaged. Please contact our customer support center via the contact information in the widget in the bottom right corner of our official website and send your keyboard and mouse model number to our customer service, and we will make further confirmation for you.
-
Q: Why can't I use hotkeys?
A: Please try the following troubleshooting steps to figure out the problem:
1. Please check if your keyboard is plugged into the USB 3.0 port on the KVM. If it is, plug the keyboard into the dedicated keyboard and mouse ports on the KVM instead.
2. Try pressing different key combinations to see if the hotkey trigger has accidentally been set to another key. The default hotkey trigger for HDK202-P23 is Right-Ctrl. Please try pressing Scroll Lock+Scroll Lock+1/Left-Ctrl+Left-Ctrl+1 to check if it works. Additionally, HDK202-P23 supports changing the hotkey trigger to Scroll Lock, Right-Ctrl, or Left-Ctrl.
3. Check if your keyboard has a [Fn] key. If it does, press [Fn]+[Right-Ctrl]+[Right-Ctrl]+1/2 to see if it allows normal operation.
-
Q: Why can't I hear any sound when I plug my audio device into the KVM?
A: For HDK202-P23 which has a dedicated microphone interface or headset interface, the audio signal is transmitted via the USB channel. Please make sure that you have selected the correct USB audio device in your computer's audio settings. Typically, USB audio devices connected to the KVM switch are recognized as "USB Audio Device" on your computer settings (though occasionally they may be recognized by a different name). Alternatively, you can unplug and plug the audio device to confirm that the newly recognized device is the one you need to select.
-
Q: Why are both of my monitors displaying a black screen when I connect my devices to the KVM?
A: Please check by referring to the troubleshooting steps in the link below: Dual/Triple Monitor KVM Switch all black screens.
-
Q: Why is one of my monitors black when I connect my device to the KVM?
A: Please check by referring to the troubleshooting steps in the link below: Dual/Triple Monitor KVM Switch Only one monitor can display.
-
Q: Why are one/both of my monitors displaying a flickering screen when I connect my devices to the KVM?
A: Please check by referring to the troubleshooting steps in the link below: What to do if the video output flickers?
-
Q: What should I do if I've lost the remote control for my KVM switch?
A: If you are located in the United States, you can purchase a replacement remote control by following this link: US. If you are in the European Union region, please feel free to reach out to our customer support center via the contact information located in the bottom right popup widget of our official website for assistance. We are here to help.
-
Q: Does the product have a factory reset function?
A: The product does not support restoring factory settings. Please contact our customer service center if you have any problems.
-
Q: Does the product support firmware updates?
A: Currently, our products do not have firmware updates available. If you are experiencing any issues, please feel free to reach out to us for assistance through the bottom right popup widget of our official website.
-
Q: Does the product support 7*24 hours of work?
A: Our product supports continuous power-on and operation. However, to extend the lifespan of the KVM, we will recommend customers turn off the power when not in use. If you require the KVM to stay on continuously, we suggest ensuring a stable power supply environment and regularly checking the KVM's status.
